Pac-Man Arcade PCB
Bally Midway

Pac-Man Arcade PCB

Our Pac-Man Arcade PCB replica faithfully reproduces the Bally Midway classic released in North America in 1980. The board features the original Zilog Z80 architecture and custom Namco chips, assembled by hand in our Fresno, California workshop using period-correct components wherever possible. Perfect for arcade restorations, museum displays, or any collector who wants a piece of golden-age arcade history on the shelf.

$899
Total: $899
From bare PCB to your shelf

The Build

1

Schematic Verification

1.5h

Cross-reference the original reference design against high-resolution scans of period documentation. Identify any errata.

2

PCB Drill & Inspect

1h

Drill plated-through holes, inspect under magnification, clean and prep the substrate.

3

Hand Solder

5h

Period-correct components placed and soldered by hand. Every joint inspected, every value verified against the BOM.

4

Burn-in & QA

2h

Powered on a regulated bench supply, run for 24 hours, then functional test against the original software stack.

Total: ~9.5 hours of bench time per board, assembled by Logan in Fresno, California.

From the workshop's customers

Reviews

Write a Review

No reviews yet for this product. Be the first.

More from Pac-Man

You might also like

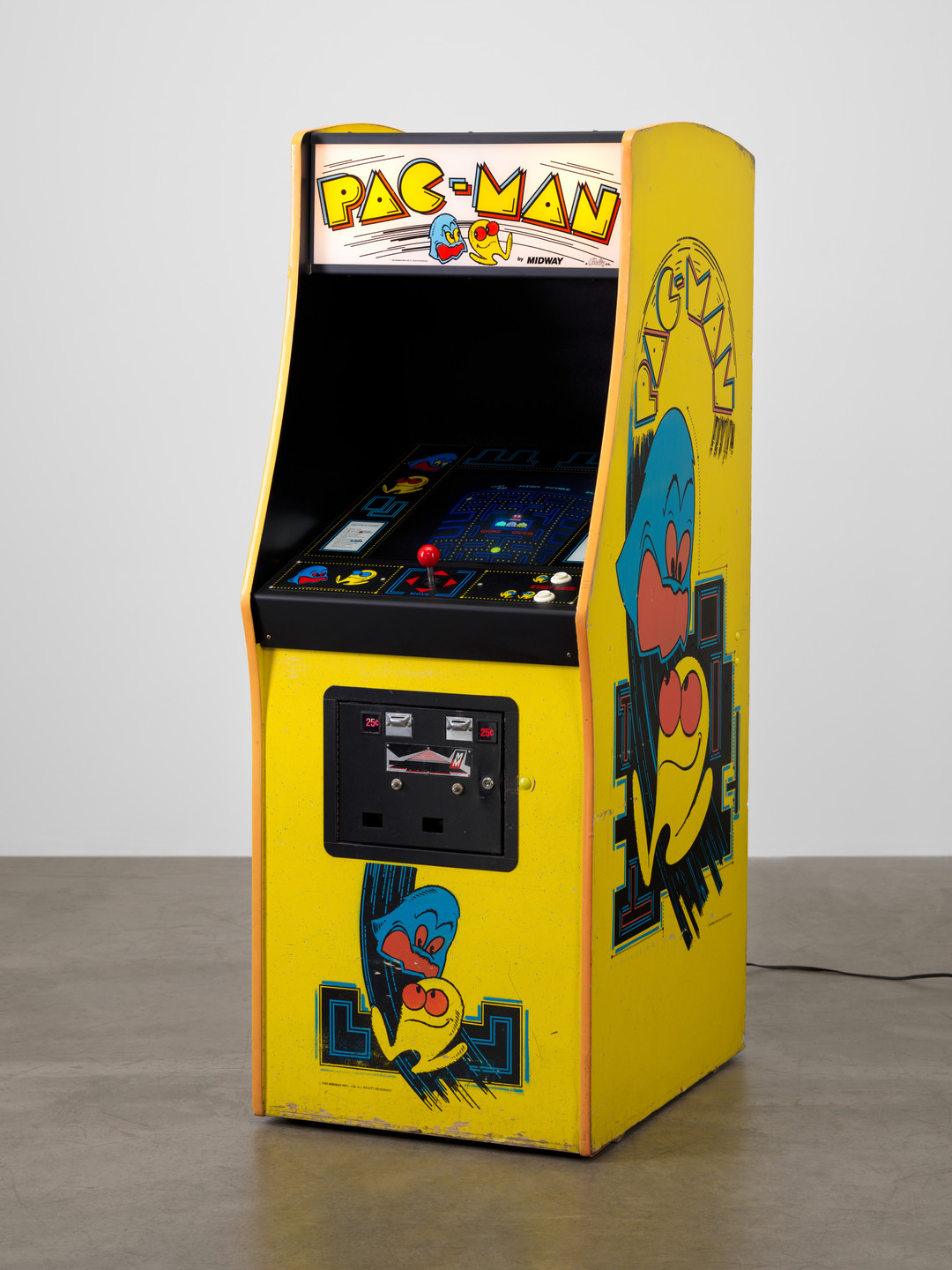

1980 Pac-Man Machine
